Perforated Type Cable Trays

You are here : Home | Perforated Type Cable Trays

Perforated Type Cable Trays

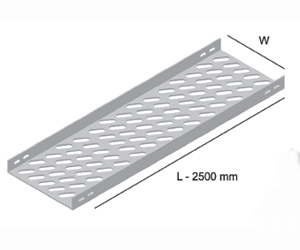

Straight Length

Straight Length

W(mm) H(mm) T(mm)
50 25/50 1.6/2
75
25/50 1.6/2
100 25/50 1.6/2
150 25/50 1.6/2
200 25/50 2/2.5
300 25/50 2/2.5
400 25/50 2/2.5
500 25/50 2/2.5
600 25/50 2/2.5

Fish Plate

Fish Plate

W(mm) H(mm) T(mm) No.Slots Types
53 25/50 2 1 1.6/2
78
25/50 2 1 1.6/2
104 25/50 2 1 1.6/2
154 25/50 2 1 1.6/2
204 25/50 2 1 2.2/5
304 25/50 3 2 2.2/5
404 25/50 3 2 2.2/5
504 25/50 3 2 2.2/5
604 25/50 3 2 2.2/5

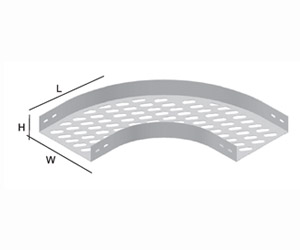

90 Bend

90oBend

W(mm) H(mm) T(mm)
50 25/50 1.6/2
75
25/50 1.6/2
100 25/50 1.6/2
150 25/50 1.6/2
200 25/50 2/2.5
300 25/50 2/2.5
400 25/50 2/2.5
500 25/50 2/2.5
600 25/50 2/2.5

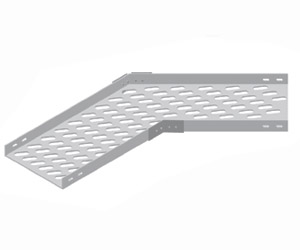

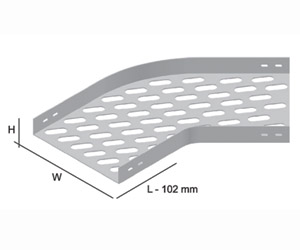

45 Bend

45oBend

W(mm) H(mm) T(mm)
50 25/50 1.6/2
75
25/50 1.6/2
100 25/50 1.6/2
150 25/50 1.6/2
200 25/50 2/2.5
300 25/50 2/2.5
400 25/50 2/2.5
500 25/50 2/2.5
600 25/50 2/2.5

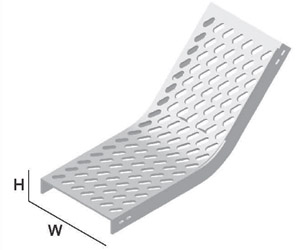

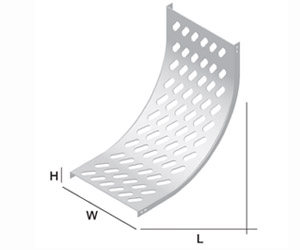

90 Internal Riser

90oInternal Riser

W(mm) H(mm) T(mm)
50 25/50 1.6/2
75
25/50 1.6/2
100 25/50 1.6/2
150 25/50 1.6/2
200 25/50 2/2.5
300 25/50 2/2.5
400 25/50 2/2.5
500 25/50 2/2.5
600 25/50 2/2.5

90 External Riser

90oExternal Riser

W(mm) H(mm) T(mm)
50 25/50 1.6/2
75
25/50 1.6/2
100 25/50 1.6/2
150 25/50 1.6/2
200 25/50 2/2.5
300 25/50 2/2.5
400 25/50 2/2.5
500 25/50 2/2.5
600 25/50 2/2.5

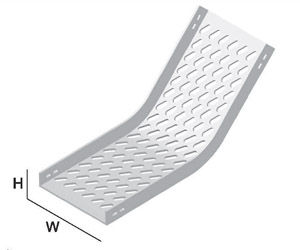

45 Internal Riser

45oInternal Riser

W(mm) H(mm) T(mm)
50 25/50 1.6/2
75
25/50 1.6/2
100 25/50 1.6/2
150 25/50 1.6/2
200 25/50 2/2.5
300 25/50 2/2.5
400 25/50 2/2.5
500 25/50 2/2.5
600 25/50 2/2.5

45 External Riser

45oExternal Riser

W(mm) H(mm) T(mm)
50 25/50 1.6/2
75
25/50 1.6/2
100 25/50 1.6/2
150 25/50 1.6/2
200 25/50 2/2.5
300 25/50 2/2.5
400 25/50 2/2.5
500 25/50 2/2.5
600 25/50 2/2.5

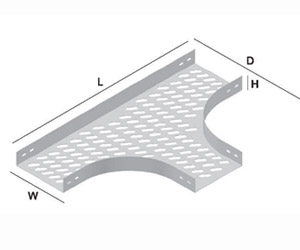

Tee

Tee

W(mm) H(mm) L(mm) D(mm) T(mm)
50 25/50 356 203 1.6/2
75
25/50 381 228 1.6/2
100 25/50 406 253 1.6/2
150 25/50 456 303 1.6/2
200 25/50 506 353 2/2.5
300 25/50 606 453 2/2.5
400 25/50 706 553 2/2.5
500 25/50 806 653 2/2.5
600 25/50 906 753 2/2.5

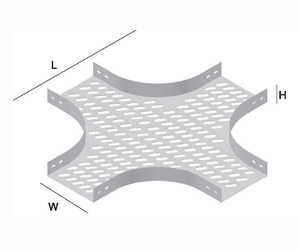

Cross

Cross

W(mm) H(mm) L(mm) T(mm)
50 25/50 350 1.6/2
75
25/50 375 1.6/2
100 25/50 400 1.6/2
150 25/50 450 1.6/2
200 25/50 500 2/2.5
300 25/50 600 2/2.5
400 25/50 700 2/2.5
500 25/50 800 2/2.5
600 25/50 900 2/2.5

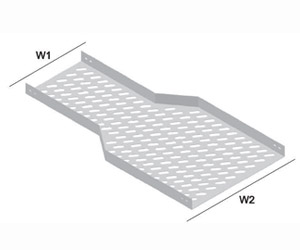

LH / RH Reducer

LH / RH Reducer

W-1 W-2 T(mm)
50 75 1.5/2
75
100 1.5/2
100 150 1.5/2
150 200 1.5/2
200 300 2/2.5
300 400 2/2.5
400 500 2/2.5
500 600 2/2.5
600 800 2/2.5

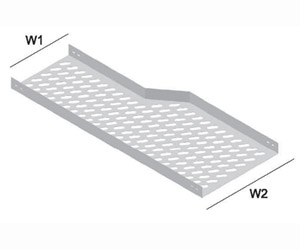

Central Reducer

Central Reducer

W-1 W-2 T(mm)
50 75 1.5/2
75
100 1.5/2
100 150 1.5/2
150 200 1.5/2
200 300 2/2.5
300 400 2/2.5
400 500 2/2.5
500 600 2/2.5
600 800 2/2.5

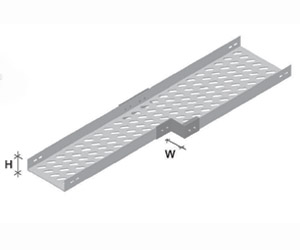

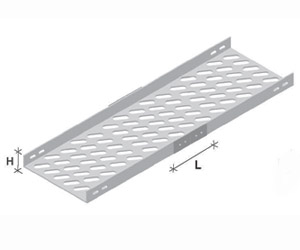

Coupaler / Straight Joint Plate

Coupaler / Straight Joint Plate

W(mm) L(mm) T(mm)
52 210 1.5
77
210 1.5
102 210 1.5

Reducer Plate

Reducer Plate

Width(mm)
100
200
300

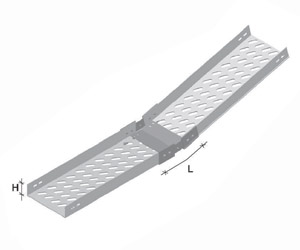

Vertical Adjustable Joint Plate

Vertical Adjustable Joint Plate

H(mm) L(mm) T(mm)
52 400 1.5
77
400
1.5
102 400
1.5

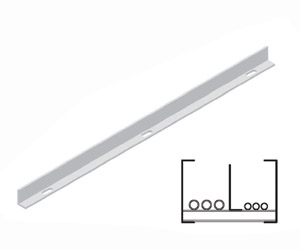

Partition Plate

Partition Plate

Size (mm)
25
50
75
100

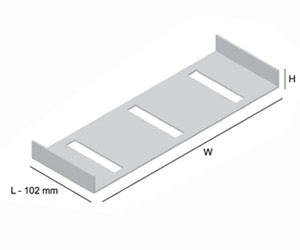

Horizontal Adjustable Splice Plate

Horizontal Adjustable Splice Plate

H (mm) L (mm) T (mm)
52 270 1.5
77 270 1.5
102 270 1.5

Hold Down Clamp - 1 set

Hold Down Clamp - 1 set

H(mm) T(mm)
52 1.5
77
1.5
102 1.5

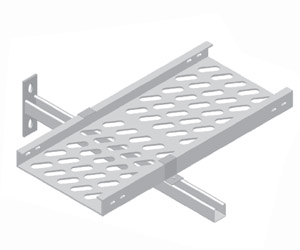

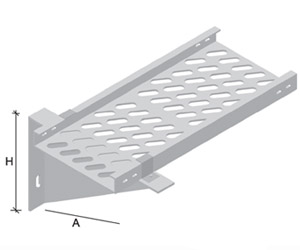

Support Bracket

Support Bracket

Width of Applicable Tray (mm) Thikness (mm) A (mm) H (mm)
200 2.3 300 125
300 2.3 400 125
400 3.0 500 150
600 3.0 700 150
700 3.0 800 150

request-quote


Standard Length In Standard length of 2.5 mtrs (2500 mm)
Width 50 mm, 100 mm, 150 mm, 200 mm, 300 mm, 450 mm, upto 1000 mm
Thickness 1.6 mm to 3 mm
Height 50 mm, 100 mm, 125 mm, 150 mm
Materials Mild Steel Aluminum, Stainless Steel conforming to IS
Finish Hot Dip Galvanized, Red-oxide, Enamel painted, Special Paint, Powder Coating, Self-colored

Perforated Type Cable Tray are used to distribute cable and has been designed carefully keeping in mind industrial requirements. These trays are manufactured using top quality material and are available in various sizes. We can offer customized solution for all the products


Strength : Light, Medium & Heavy Duty

These cable trays also available as Welded Type with high grade galvanized sheet and other materials such as painted and powder coated finish on mild steel.
Perforated cable tray offer high strength as per specification which made them perfect for heavy-duty power distribution in industries, manufactured using pre-galvanized mild steel. These Ladders are available in width ranging from 150mm to 1200 mm and height ranging from 50 mm to 150 mm. Available in standards length of 2500 mm.


Types Perforated Type Cable Tray (Welded)
Strength Light, Medium & Heavy Duty
Raw Material MS, SS, Aluminum
Width 150 mm - 2000 mm
Height 40 mm - 150 mm
Thickness 1.2 mm –3.0 mm
Lengthl 1000 mm - 3000 mm
Finish Self-Finish, Pre-Galvanised, Hot Dip Galvanising as per IS 2629/4759, BS 729, ASTM 123, Painted (Red oxide, Painted & Powder Coated)


TECHNICAL SPECIFICATIONS FOR PERFORATED GI CABLE TRAY
1. Description of the item:
SCOPE: This specification covers the technical requirements, testing and other general requirements for the supply of Perforated GI Cable Trays with Tray cover.
GENERAL REQUIREMENTS: The perforated cable trays with Tray cover shall be manufactured from good commercial, high grade strength sheet steel having minimum thickness of 1.6mm for Tray and 1mm for Tray Cover.
